picoTracker Display & PCB kit v2.1

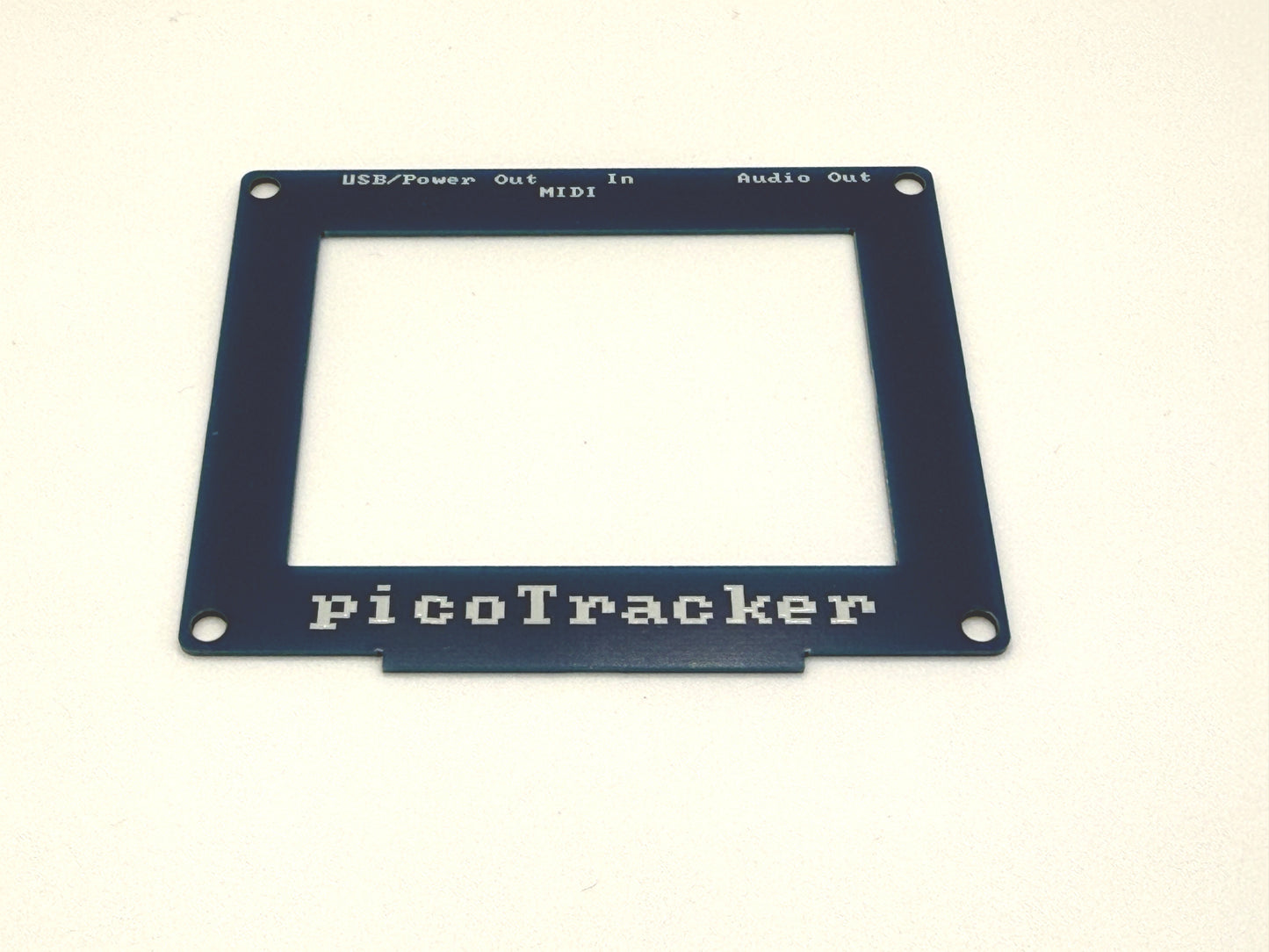

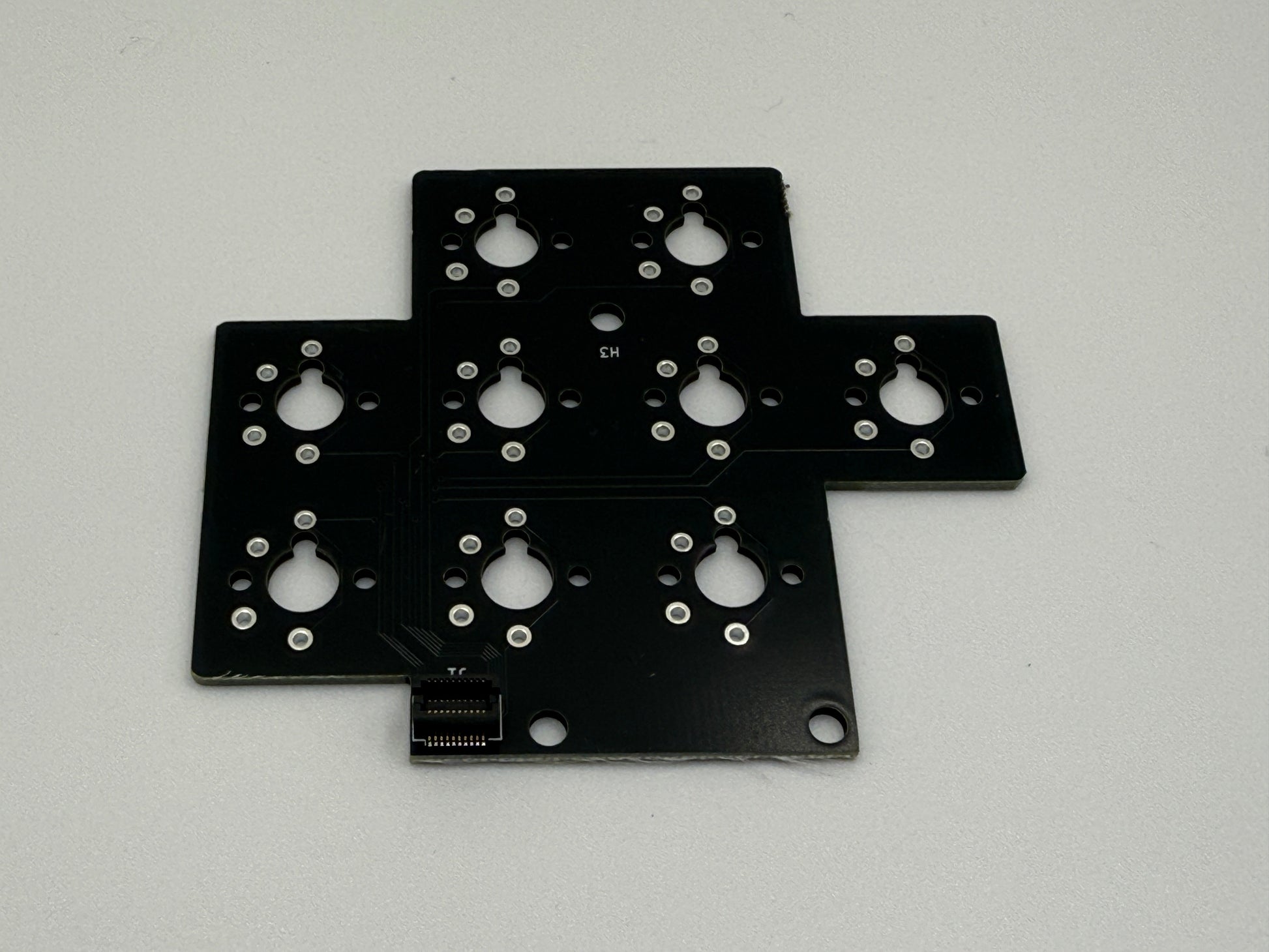

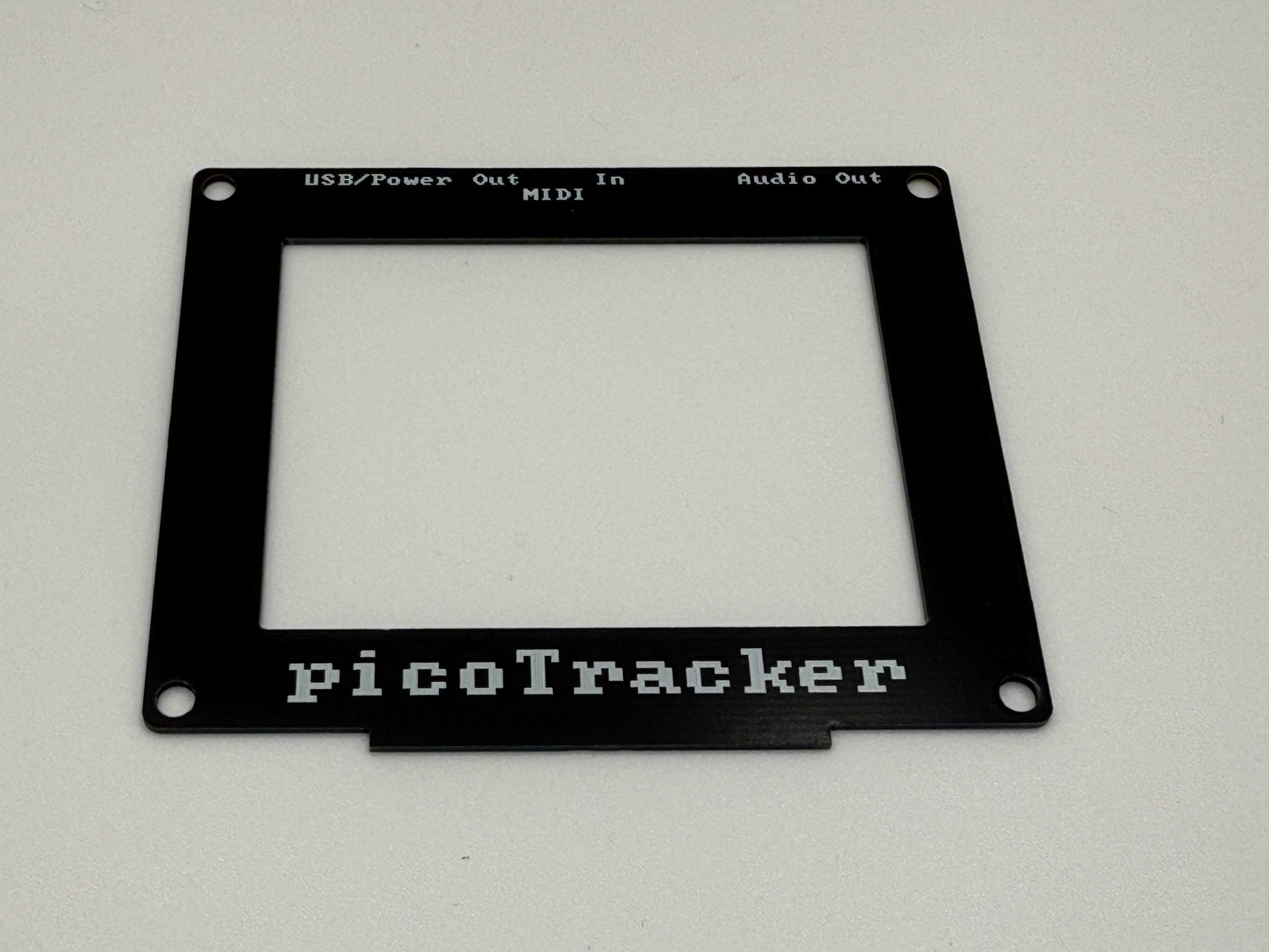

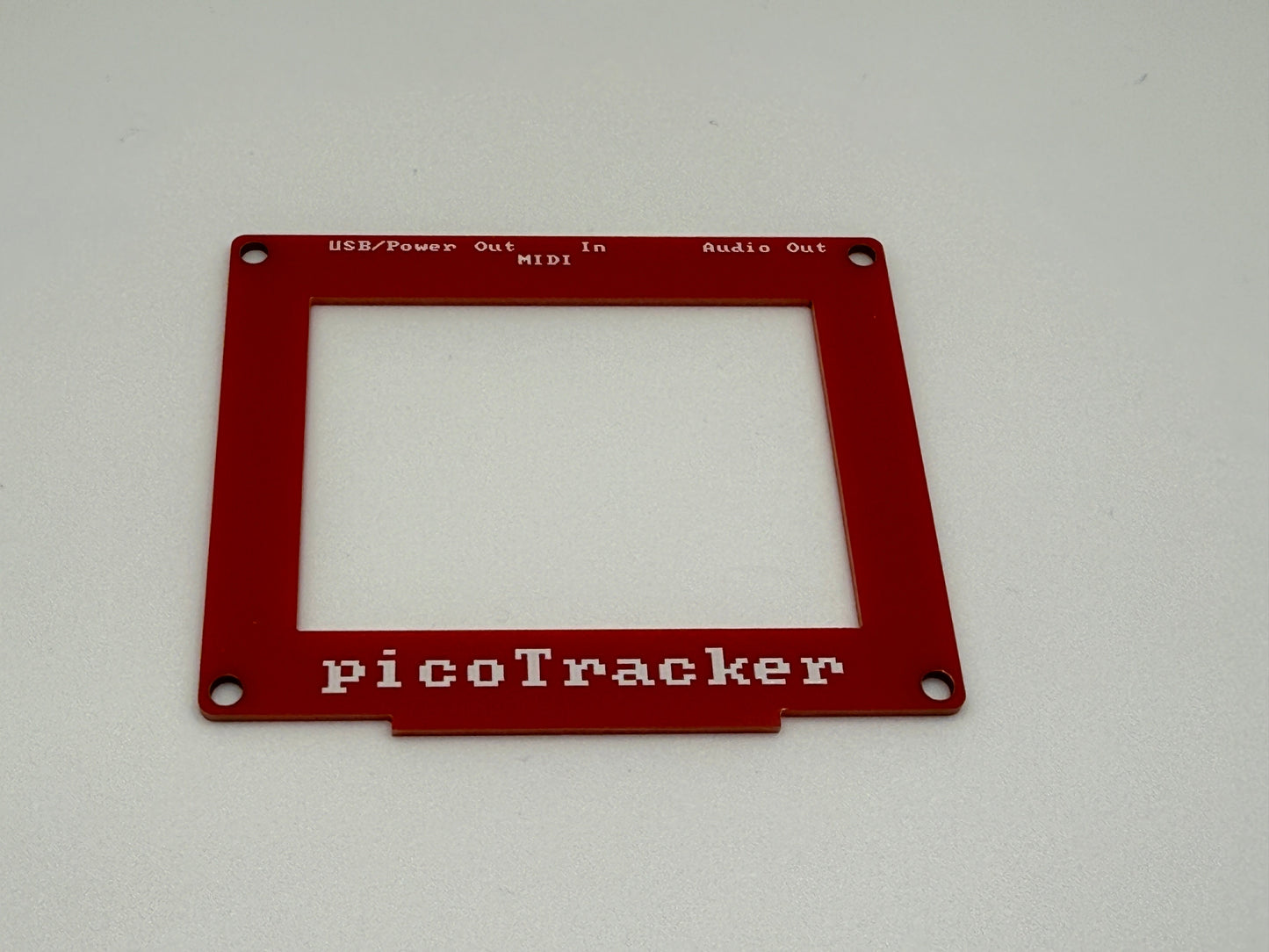

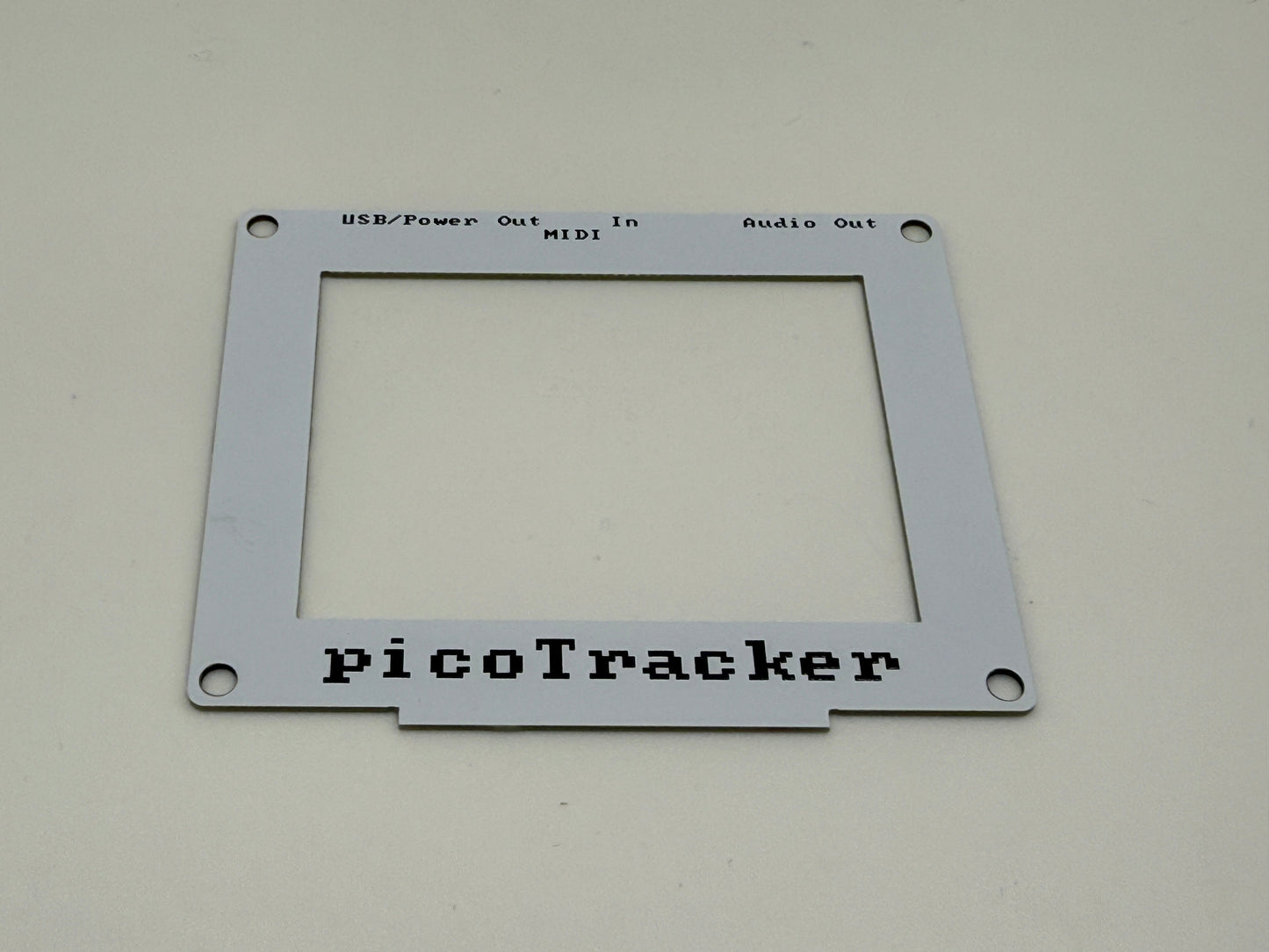

HP28008-D Display with set of 3 PCBs (main board, keypad and bezel).

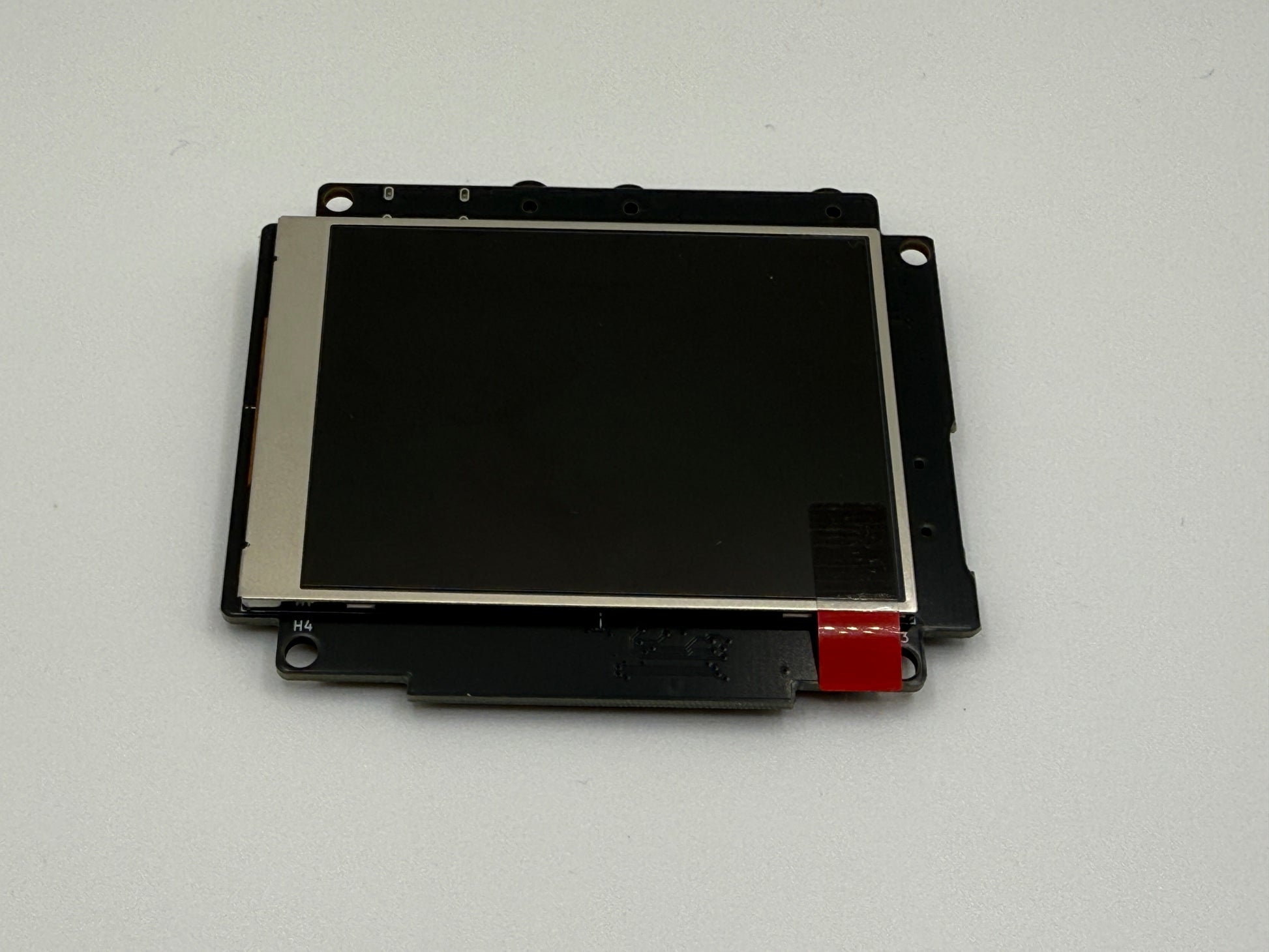

To help you with building your picoTracker, the kit now comes with the LCD display mounted and tested on the main PCB and with the current stable firmware preinstalled.

Extras: We always try to include something extra like a 3D printed transparent power switch and occasionally some other gift. Please note that this is NOT part of the product and we cannot guarantee that any extra items will be shipped with every order.

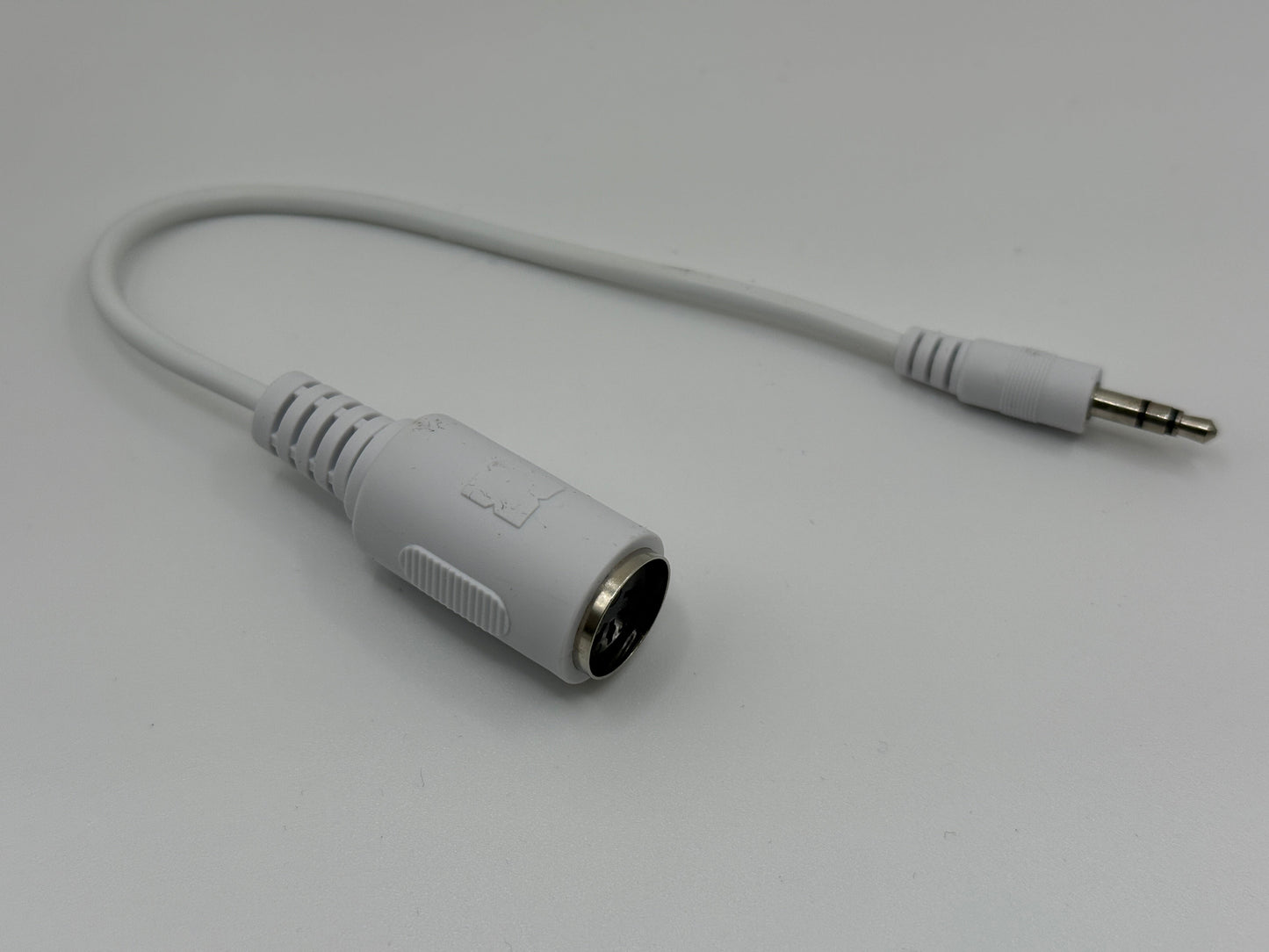

Revision 2.1 of the main PCB now uses a new LCD cable connector to make installation easier and will support TRS MIDI in when used with v2.1 of the picoTracker firmware.

Please note even though only minimal through hole soldering is required, these PCB kits are intended only for people confident in assembling electronic devices from parts. Please be sure to consult the builde guide, video, FAQs and other resources before commencing building your picoTracker.

To complete this build you'll need to source yourself:

• 3D printed case (STL files provided in build instructions)

• LIP1708 Battery (PS5 controller)
• 11 x M3x4mm screws
• Cherry low profile or Kailh choc v1 Switches
• DSA, choc or custom printed keycaps
• Micro SD card
