picoTracker PCB kit v2.1

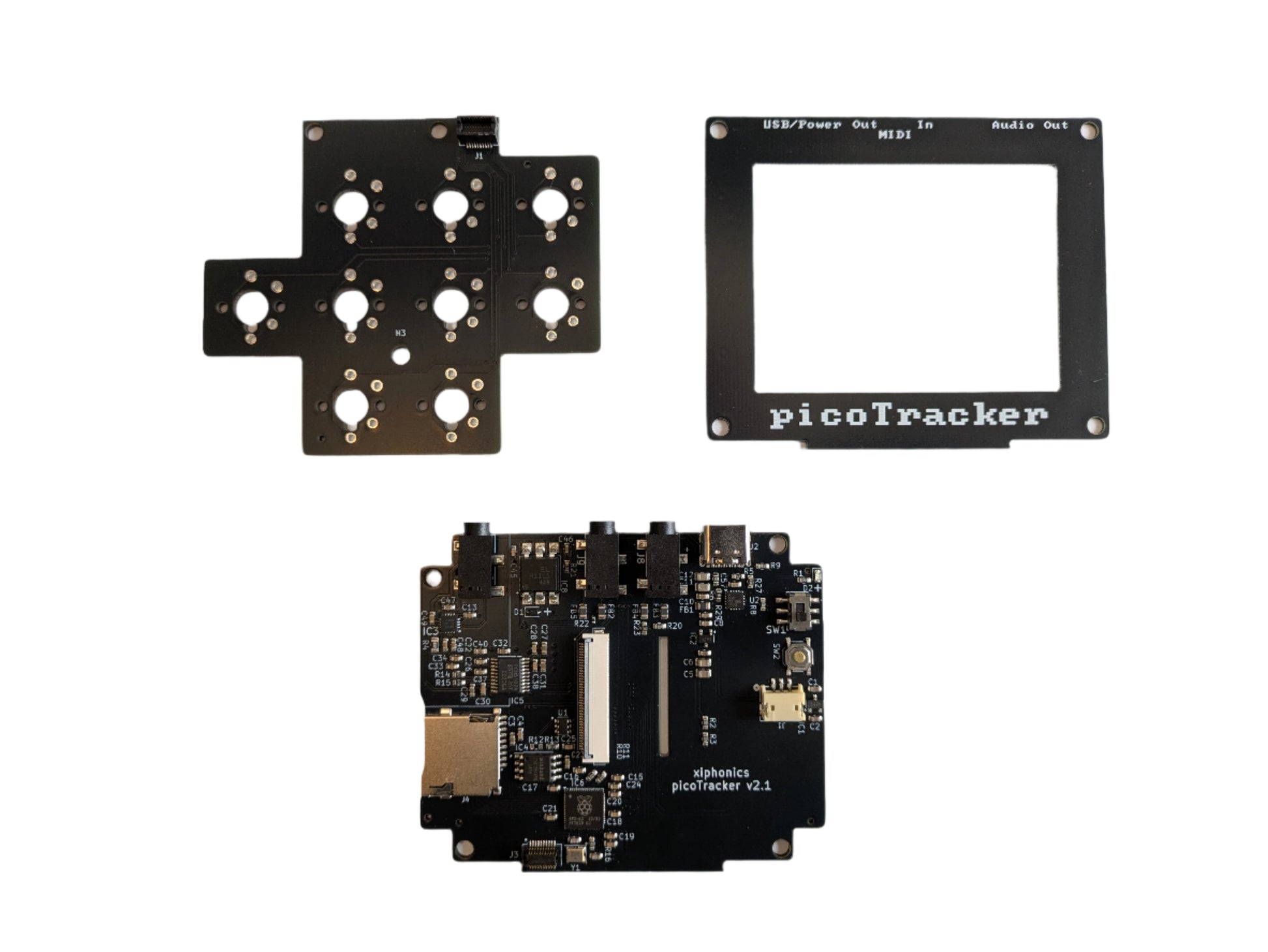

Set of 3 PCBs (main board, keypad and bezel)

Also includes: 3d printed power switch included and information card.

Revision 2.1 of the main PCB now uses a new LCD cable connector to make installation easier and will support TRS MIDI in when used with v2.1 of the picoTracker firmware.

Please note even though only minimal through hole soldering is required, these PCB kits are intended only for people confident in assembling electronic devices from parts.

To complete this build you'll need to source yourself:

• 3D printed case (STL files provided in build instructions)
• HP28008-D Display
• LIP1708 Battery (PS5 controller)
• 11 x M3x4mm screws
• Cherry low profile or Kailh choc v1 Switches
• DSA, choc or custom printed keycaps
• Micro SD card
